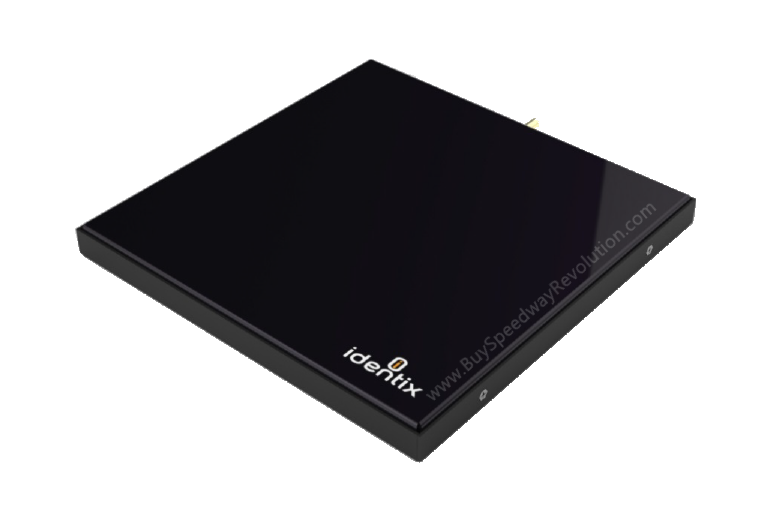

Identix Circular Polarized UHF RFID Far Field Antenna

Product Overview
The Identix ANT85C7070 is a high efficiency UHF Circular Polarized RFID Antenna. It offers a high gain, low axial ratio, making it an excellent choice for the different UHF RFID applications.
$115.00

The Identix ANT85C7070 Circular Polarized UHF Far Field Antenna

The Identix ANT85C7070 is a Circular Polarized Far Field UHF RFID antenna recommended for use in doorways, conveyor belts, cages and other applications where reading tags at different distances is a requirement.

This is a circular polarized antenna with a high gain and a low axial ratio making it an excellent choice for a variety of UHF RFID applications.

It has a compact, modern and lightweight design that allows installation in different types of industries such as commerce, industry and healthcare.

Applications

  • General UHF RFID Portals
  • Logistics and Distribution
  • Personnel and Vehicle access applications

The Identix ANT85C707 at a glance

  • Operating frequency: 900-930MHz
  • Polarization: right hand circular polarization
  • 3 dB Beamwidth - Azimuth: 70° x 70°
  • VSWR: lower than 1.4:1 across all frequency bands
  • Axial ratio: 0.6dB @ 915Mhz
Products specifications
Polarization Circular
Operating Frequency 900 to 930 Mhz
Input Impedence 50 Ohms
Far Field Gain 8.5 dBic
Beamwidth 3 dB
Azimuth 70° x 70°
Maximum VSWR < 1.4:1
Front to Back Ratio 17 dB
Near Field Intensity -1.25 dBA/m @ 2.5 cm (max)
Maximum Input Power 20 Watts
Connector SMA Female
Ingress Protection IP 54
Base Painted Aluminum
Radome PETG Plastic 1.5 mm thick
Dimensions (H x W x D) 7.7 x 7.7 x .55 in / 196 x 196 x 14 mm
Weight 300g / 10.6 oz
Product Description

The Identix ANT85C7070 Circular Polarized UHF Far Field Antenna

The Identix ANT85C7070 is a Circular Polarized Far Field UHF RFID antenna recommended for use in doorways, conveyor belts, cages and other applications where reading tags at different distances is a requirement.

This is a circular polarized antenna with a high gain and a low axial ratio making it an excellent choice for a variety of UHF RFID applications.

It has a compact, modern and lightweight design that allows installation in different types of industries such as commerce, industry and healthcare.

Applications

  • General UHF RFID Portals
  • Logistics and Distribution
  • Personnel and Vehicle access applications

The Identix ANT85C707 at a glance

  • Operating frequency: 900-930MHz
  • Polarization: right hand circular polarization
  • 3 dB Beamwidth - Azimuth: 70° x 70°
  • VSWR: lower than 1.4:1 across all frequency bands
  • Axial ratio: 0.6dB @ 915Mhz
Additional information
Manufacturer: Identix
Products specifications
Polarization Circular
Operating Frequency 900 to 930 Mhz
Input Impedence 50 Ohms
Far Field Gain 8.5 dBic
Beamwidth 3 dB
Azimuth 70° x 70°
Maximum VSWR < 1.4:1
Front to Back Ratio 17 dB
Near Field Intensity -1.25 dBA/m @ 2.5 cm (max)
Maximum Input Power 20 Watts
Connector SMA Female
Ingress Protection IP 54
Base Painted Aluminum
Radome PETG Plastic 1.5 mm thick
Dimensions (H x W x D) 7.7 x 7.7 x .55 in / 196 x 196 x 14 mm
Weight 300g / 10.6 oz
