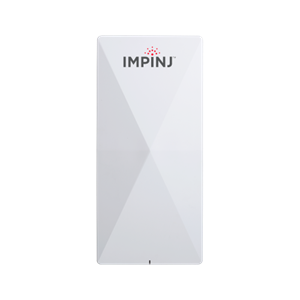

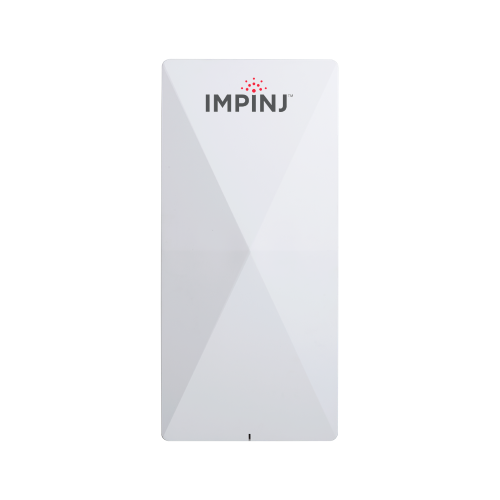

Impinj xSpan Gateway

Product Overview
Impinj xSpan RFID Gateway - Real-time Inventory Insights, Always-On Asset Tracking
*
*
*
$2,875.00

Impinj xSpan Gateway

Real-time Inventory Insights Always-On Asset Tracking

The Impinj xSpan gateway reduces business operational costs and maximizes sales by providing constant, accurate inventory visibility, reducing loss and minimizing time spent locating and tracking items.

Ideal for inventory management, asset tracking and dock door solutions in retail, healthcare, and supply chain, the xSpan gateway simplifies RAIN RFID reader installation and management, lowering the total cost of infrastructure ownership.

xSpan Gateway Features

  • Continuous Area Monitoring
  • Item Movement Detection
  • Discrete and Compact Design

xSpan Use Cases

Movement Detection

    Enhances front store and back store inventory management enabling loss prevention and exit detection solutions.

Asset Tracking

    Increases asset availability while reducing labor costs and inefficiencies due to manual cycle counts.

Production Monitoring

    Improves efficiency by ensuring accurate material flow from receiving, through production, and out dock doors.

xSpan Benefits

Easy to Deploy and Use

    Suite of configuration and development tools simplifies reader management.

High Performance

    Continuous peak performance through built-in automation.

Reduces Operational Costs

    Provides constant visibility of inventory and asset movement.
Products specifications
Use Case Portals and Entrances, Room Monitoring, Movement Detection
Coverage Area 1,000 sq. ft. with Monza R6 based tags*, coverage area may be less with other RFID tags.
Number of Beams 13 Dual Polarized Beams
Operating Modes
  • Inventory (tag monitoring)
  • Tag Direction (track tags as they move thru sectors)
Air Interface Protocol RAIN RFID / UHF Gen 2 ( ISO 18000-63 ) / GS1
Receive Sensitivity ( Maximum ) -84 dBm Monostatic
Application Interface EPCglobal Low Level Reader Protocol (LLRP) v1.0.1
Network Connectivity 10/100BASE-T auto-negotiate (full/half) with auto-sensing MDI/MDX for auto-crossover (RJ-45)
IP Address Configuration DHC P, Static, or Link Local Addressing (LLA) with Multicast DNS (mDNS); Initial network connection fails over to static address.
Time Synchronization Network Time Protocol (NTP)
Management Interfaces
  • Impinj Web Management UI
  • Impinj RShell Management Console using serial management console port, telnet or SSH
  • SNMPv2 MIBII
  • EPCglobal Reader Management v1.0.1
  • Syslog
Power Sources
  • Power over Ethernet (PoE) IEEE 802.3af
  • +24V +/- 5% via external universal power supply with locking connector
Environmental Sealing IEC IP52
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Dimensions (H x W x D) 18.8 x 8.7 x 3.5 in (48 x 22 x 9 cm)
Weight 7.6 lbs (3.4 kg)
RoHS Compliant Yes
Frequency Bands
  • 902 to 928 MHz - FCC
  • 865 to 868 MHz - ETSI
Software
  • RFID Revolution Express
  • RFID Starter Tool
  • Multi-Reader
  • ItemTest
  • Speedway SDK, ETK and LTK library support
RF Certifications
  • US, Canada, and other regions following US FCC Part 15 regulations (902-928 MHz) or Geographies
  • Europe and other regions following ETSI EN 302 208 v1.2.1 without LBT regulations (865-868 MHz)
Part #s IPJ-REV-R660-USA1M1, IPJ-REV-R660-EU11M1, IPJ-REV-R660-GX11M1, IPJ-REV-R660-GX21M1, IPJ-REV-R660-GX31M1, IPJ-REV-R660-JP21M1
Product Description

Impinj xSpan Gateway

Real-time Inventory Insights Always-On Asset Tracking

The Impinj xSpan gateway reduces business operational costs and maximizes sales by providing constant, accurate inventory visibility, reducing loss and minimizing time spent locating and tracking items.

Ideal for inventory management, asset tracking and dock door solutions in retail, healthcare, and supply chain, the xSpan gateway simplifies RAIN RFID reader installation and management, lowering the total cost of infrastructure ownership.

xSpan Gateway Features

  • Continuous Area Monitoring
  • Item Movement Detection
  • Discrete and Compact Design

xSpan Use Cases

Movement Detection

    Enhances front store and back store inventory management enabling loss prevention and exit detection solutions.

Asset Tracking

    Increases asset availability while reducing labor costs and inefficiencies due to manual cycle counts.

Production Monitoring

    Improves efficiency by ensuring accurate material flow from receiving, through production, and out dock doors.

xSpan Benefits

Easy to Deploy and Use

    Suite of configuration and development tools simplifies reader management.

High Performance

    Continuous peak performance through built-in automation.

Reduces Operational Costs

    Provides constant visibility of inventory and asset movement.
Additional information
Manufacturer: Impinj
Products specifications
Use Case Portals and Entrances, Room Monitoring, Movement Detection
Coverage Area 1,000 sq. ft. with Monza R6 based tags*, coverage area may be less with other RFID tags.
Number of Beams 13 Dual Polarized Beams
Operating Modes
  • Inventory (tag monitoring)
  • Tag Direction (track tags as they move thru sectors)
Air Interface Protocol RAIN RFID / UHF Gen 2 ( ISO 18000-63 ) / GS1
Receive Sensitivity ( Maximum ) -84 dBm Monostatic
Application Interface EPCglobal Low Level Reader Protocol (LLRP) v1.0.1
Network Connectivity 10/100BASE-T auto-negotiate (full/half) with auto-sensing MDI/MDX for auto-crossover (RJ-45)
IP Address Configuration DHC P, Static, or Link Local Addressing (LLA) with Multicast DNS (mDNS); Initial network connection fails over to static address.
Time Synchronization Network Time Protocol (NTP)
Management Interfaces
  • Impinj Web Management UI
  • Impinj RShell Management Console using serial management console port, telnet or SSH
  • SNMPv2 MIBII
  • EPCglobal Reader Management v1.0.1
  • Syslog
Power Sources
  • Power over Ethernet (PoE) IEEE 802.3af
  • +24V +/- 5% via external universal power supply with locking connector
Environmental Sealing IEC IP52
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Dimensions (H x W x D) 18.8 x 8.7 x 3.5 in (48 x 22 x 9 cm)
Weight 7.6 lbs (3.4 kg)
RoHS Compliant Yes
Frequency Bands
  • 902 to 928 MHz - FCC
  • 865 to 868 MHz - ETSI
Software
  • RFID Revolution Express
  • RFID Starter Tool
  • Multi-Reader
  • ItemTest
  • Speedway SDK, ETK and LTK library support
RF Certifications
  • US, Canada, and other regions following US FCC Part 15 regulations (902-928 MHz) or Geographies
  • Europe and other regions following ETSI EN 302 208 v1.2.1 without LBT regulations (865-868 MHz)
Part #s IPJ-REV-R660-USA1M1, IPJ-REV-R660-EU11M1, IPJ-REV-R660-GX11M1, IPJ-REV-R660-GX21M1, IPJ-REV-R660-GX31M1, IPJ-REV-R660-JP21M1
