Identix miniPad USB Desktop Reader

Product Overview
The Identix miniPad is a high performance USB Desktop RFID Reader with Integrated Antenna based on the Impinj RS500 - Impinj Intelligence.
*
$495.00

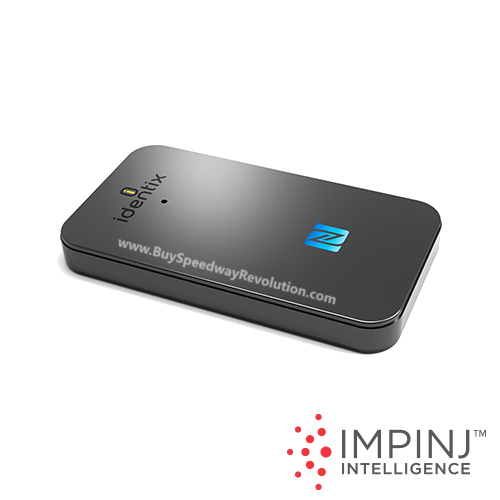

Identix miniPad® USB Desktop Reader

The Identix miniPad® is a high performance ultra-compact USB UHF RFID reader. It has a built-in circular polarized antenna, which enhances ease of readability and reduces the hardware and deployment costs.

The modern and stylish design together with its competitive cost, make the miniPad® the ideal device for retail applications, especially fashion and apparel.

When used with a POS device, the miniPad® is versatile and allows for fast, secure and efficient item reads, reducing checkout times and improving customer satisfaction.

Identix miniPad® can operate in "keyboard wedge mode" (USB keyboard emulation via HID) that facilitates integration with software applications prepared for use with barcode readers. When operating in "HID" mode, miniPad® can be configured for automatic decoding of RFID tags EPC memory data in SGTIN96 format to UPC / EAN-13 barcode format.

With easy integration, simplicity, robustness and low cost, miniPad® is the ideal device for use in different applications and environments: retail, healthcare, libraries and others.

Identix miniPad® at a glance

  • Mini USB UHF RFID reader with integrated antenna
  • Ideal for applications that require reading at short distances
  • Can operate in “keyboard wedge” (keyboard emulation) mode, which enables easy integration to software applications designed to work with barcode scanners
  • UHF module with maximum software configurable transmit power of +23 dBm

Connectivity

  • USB 2.0 port for communications and power

Data Capture

  • Integrated UHF RFID Reader/Encoder
Products specifications
Air Interface Protocol RAIN RFID / UHF Gen 2 ( ISO 18000-63 ) / GS1
Frequency Band FCC (902 to 928 Mhz)
Operating Region North America, Taiwan, Peru, Uruguay, Brazil, Hong Kong, Indonesia, Singapore, Thailand, New Zealand, Phillipines
Transmit Power ( Maximum ) +23 dBm, configurable in increments of 0.1 dB
Throughput Reads up to 140 tags in DRM or 250 tags in High Throughput mode
Antennas Integrated Circular Polarized Antenna
Gain 0.5 dBi
Axial Ratio < 2 dB @ 920 Mhz
Maximum VSWR < 2:1
Operating Modes Transparent (Impinj IRI API) or USB Keyboard Wedge (HID)
USB Ports One USB 2.0 Port for Power and Data
Weight 100 g – 3.5 oz
Dimensions (H x W x D) 4.6 x 2.4 x .5 in / 116 x 60 x 12 mm
Ingress Protection IP 54
Operating Temperature -20°C to +65°C
RF Certifications FCC and Anatel
Part #s ID-MiniPAD-FCC, ID-MiniPAD-GX1
Product Description

Identix miniPad® USB Desktop Reader

The Identix miniPad® is a high performance ultra-compact USB UHF RFID reader. It has a built-in circular polarized antenna, which enhances ease of readability and reduces the hardware and deployment costs.

The modern and stylish design together with its competitive cost, make the miniPad® the ideal device for retail applications, especially fashion and apparel.

When used with a POS device, the miniPad® is versatile and allows for fast, secure and efficient item reads, reducing checkout times and improving customer satisfaction.

Identix miniPad® can operate in "keyboard wedge mode" (USB keyboard emulation via HID) that facilitates integration with software applications prepared for use with barcode readers. When operating in "HID" mode, miniPad® can be configured for automatic decoding of RFID tags EPC memory data in SGTIN96 format to UPC / EAN-13 barcode format.

With easy integration, simplicity, robustness and low cost, miniPad® is the ideal device for use in different applications and environments: retail, healthcare, libraries and others.

Identix miniPad® at a glance

  • Mini USB UHF RFID reader with integrated antenna
  • Ideal for applications that require reading at short distances
  • Can operate in “keyboard wedge” (keyboard emulation) mode, which enables easy integration to software applications designed to work with barcode scanners
  • UHF module with maximum software configurable transmit power of +23 dBm

Connectivity

  • USB 2.0 port for communications and power

Data Capture

  • Integrated UHF RFID Reader/Encoder
Additional information
Manufacturer: Identix
Products specifications
Air Interface Protocol RAIN RFID / UHF Gen 2 ( ISO 18000-63 ) / GS1
Frequency Band FCC (902 to 928 Mhz)
Operating Region North America, Taiwan, Peru, Uruguay, Brazil, Hong Kong, Indonesia, Singapore, Thailand, New Zealand, Phillipines
Transmit Power ( Maximum ) +23 dBm, configurable in increments of 0.1 dB
Throughput Reads up to 140 tags in DRM or 250 tags in High Throughput mode
Antennas Integrated Circular Polarized Antenna
Gain 0.5 dBi
Axial Ratio < 2 dB @ 920 Mhz
Maximum VSWR < 2:1
Operating Modes Transparent (Impinj IRI API) or USB Keyboard Wedge (HID)
USB Ports One USB 2.0 Port for Power and Data
Weight 100 g – 3.5 oz
Dimensions (H x W x D) 4.6 x 2.4 x .5 in / 116 x 60 x 12 mm
Ingress Protection IP 54
Operating Temperature -20°C to +65°C
RF Certifications FCC and Anatel
Part #s ID-MiniPAD-FCC, ID-MiniPAD-GX1
